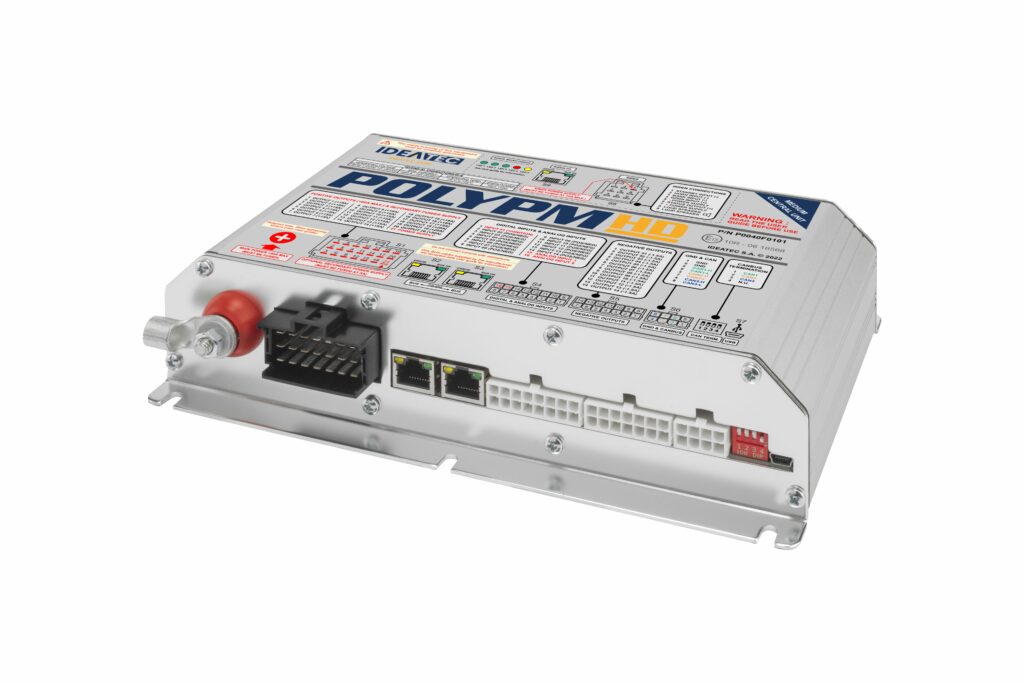

All-in-one control. The POLYPM-HD consists of a powerful power controller with integrated siren.


Available within 4 to 6 weeks

Product description

The POLYPM-HD central unit is designed to control any electrical equipment added on a vehicle. The system does include the siren generator/amplifier 100W and is fully configurable via the SpeedFitter software and allows for a multitude of automations and special functions.

Its main interests are :

– simplified assembly -> only one bus cable to the controller interfaces, no fuse because self-protected outputs, no relay because high power output and advanced automation;

– simplification of use -> direct access to emergency scenes and markup;

– dual voltage central unit +10…30VDC;

– siren fully protected against speaker shortcut, monitoring available

– canbus connections

The POLYPM-HD central unit is available in 2 different versions. Their outputs are solid-state relays fully protected against shortcircuits and overloads. Independent negative outputs, analogue inputs, positive inputs and negative inputs (+ignition, handbrake, etc.) are also available.

The POLYPM-HD central unit has 3 canbus connections. The first is dedicated to reading information (chassis, CanOpen, etc.), the second allows you to control various equipment such as canbus sirens or canbus lightbars and the third one is open to new application.

It is also possible to add optional positive power outputs (EPM-103) or analogue inputs (ADI).

The POLARIS central unit can be controlled by several digital touchscreen consoles, MK-10, MK-18, MK-DIN keys consoles, FSP-6K, FSK-6K, FSP-9K panel consoles or OpenLink for custom/external user interface.

The central unit supports, via its bus connexion or direct outputs, various
options such as heating/air conditioning control (Unitherm-HD), ventilation (ID-FAN), broadcasting of voice messages (VFI).

Easy diagnostic by distance thanks to ClickSync freeware.

Technical description

  • Max power : +80A
  • Inputs : 1 POS & 13 POS/NEG & 2 AN
  • Outputs : 17 POS(15A) & 3 POS(20A)
  • 1 x canbus chassis
  • 2 x canbus control
  • 1 x 100W included siren
  • Configuration by Speedfitter
